GP Series

GP400

Heavy Payload 6-Axis Robot

Overview

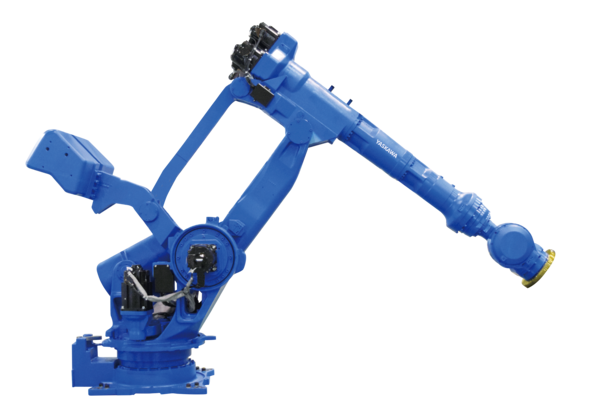

The powerful MOTOMAN GP400 handling robot provides an impressive payload of 400 kg and a maximum reach of 2,942 mm. Due to its parallel link design, the outstanding repeatability is better than +/- 0.1 mm.

Designed with extremely fast axis speeds and parallel-link construction to expertly perform heavy-payload tasks, the six-axis GP400 is ideal for heavy part handling, machine and press tending, as well as “jigless” applications. Engineered for simple installation, easy operation and minimal maintenance, this robot features a wide work envelope, along with high moment and inertia ratings for the accommodation of large, heavy parts.

A streamlined upper arm provides easy access to parts in tight spaces, and a reduced interference design allows the robot to be placed closer to workpieces and machines, optimizing floor space. Equipped with heavy-duty bearings for smooth arm rotation, the GP400 is a smart choice to fulfil a variety of heavy-payload needs.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 400 kg
  • Max. Working Range
  • 2942 mm
  • Repeatability
  • 0.1 mm
  • Weight
  • 2840 kg
  • Power Supply
  • 7 kVA
  • Maximum Speed S Axis
  • 102 °/s
  • Maximum Speed L Axis
  • 97 °/s
  • Maximum Speed U Axis
  • 97 °/s
  • Maximum Speed R Axis
  • 80 °/s
  • Maximum Speed B Axis
  • 80 °/s
  • Maximum Speed T Axis
  • 172 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
