GP FGG Series
GP4 FGG
Compact Handling-Robot with 4 kg Payload for the Food Industry
Overview

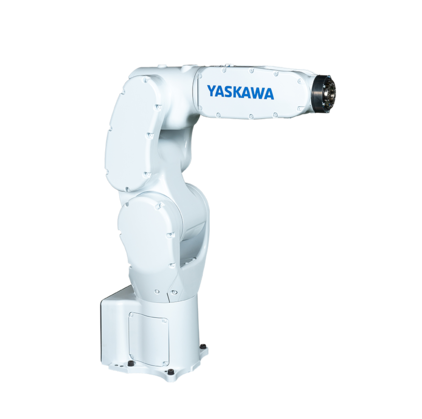

The MOTOMAN GP4 FGG is a compact and agile 6-axis robot with 4 kg payload, 550 mm reach and outstanding repeatability of +/- 0.01 mm.
Due to latest Sigma-7 Servo Technology, the MOTOMAN GP4 FGG provides excellent axis speeds and accelerations. Specifications like high IP65/67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints, and a a special drip proof coating allows the robot to be used in certain food related applications.
It’s small footprint and compact design allows installation even in the tightest spaces.
Technical Details
- Number of Axes
- 6
- Payload
- 4 kg
- Max. Working Range
- 550 mm
- Repeatability
- 0.01 mm
- Weight
- 28 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 465 °/s
- Maximum Speed L Axis
- 465 °/s
- Maximum Speed U Axis
- 525 °/s
- Maximum Speed R Axis
- 565 °/s
- Maximum Speed B Axis
- 565 °/s
- Maximum Speed T Axis
- 1000 °/s
- Mounting Options
- x No
- Further Specifications
- x No
