GP FGG Series

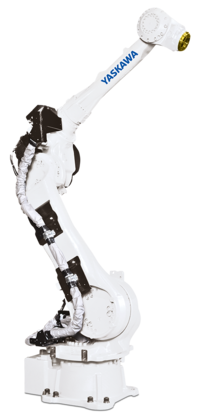

GP50 FGG
6-axis Robot with 50 kg Payload for the Food Industry
Overview
The GP50 FGG is a highly versatile 6-axis robot with 50 kg payload, 2.051 mm reach and outstanding repeatability of +/- 0.03 mm. Specifications like high IP65/67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints, and a a special drip proof coating allows the robot to be used in certain food related applications.
High transfer rates are achievable with the fast and efficient GP50 FGG robot, which offers a perfectly tuned combination of payload / speed / wrist allowable moment. Designed with the latest YASKAWA Sigma7-Servo Motor Generation, the GP50 FGG benefits from improved acceleration/deceleration control. The small footprint and slim arm design allows for minimum installation space and minimizes interference with peripheral devices.
Technical Details
- Number of Axes
- 6
- Payload
- 50 kg
- Max. Working Range
- 2061 mm
- Repeatability
- 0.03 mm
- Weight
- 585 kg
- Power Supply
- 4 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 178 °/s
- Maximum Speed U Axis
- 178 °/s
- Maximum Speed R Axis
- 150 °/s
- Maximum Speed B Axis
- 150 °/s
- Maximum Speed T Axis
- 200 °/s
- Mounting Options
- x No
- Further Specifications
- x No
