GP Series

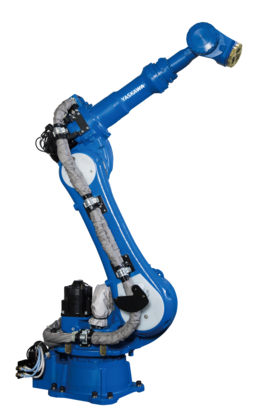

GP110
Multi-Purpose Handling Robot with 88 kg Payload
Overview
The GP110 is a compact 6-axis industrial robot with 110 kg payload, 2236 mm reach and excellent repeatability of +/- 0.03 mm. Equipped to handle high payloads for heavy part processing, the powerful six-axis GP110 robot increases productivity for a wide selection of tasks. While high moment and inertia ratings support large and heavy applications, exceptionally quick axis speeds and acceleration capabilities reduce cycle time. The compact design enables high-density robot placement in workcells. Pre-wired with signal and pneumatic lines, the high-speed GP110 offers simple installation, easy operation and minimal maintenance for increased production output.
A version with high IP67 (sust and liquid proof) protection class is available for jobs in harsh environments.
The GP110 is perfect for a wide range of applications, including machine tending, material handling, material removal, assembly, additive manufacturing, dispensing and grinding/polishing.
Technical Details
- Number of Axes
- 6
- Payload
- 110 kg
- Max. Working Range
- 2236 mm
- Repeatability
- 0.03 mm
- Weight
- 660 kg
- Power Supply
- 5 kVA
- Maximum Speed S Axis
- 140 °/s
- Maximum Speed L Axis
- 110 °/s
- Maximum Speed U Axis
- 130 °/s
- Maximum Speed R Axis
- 175 °/s
- Maximum Speed B Axis
- 175 °/s
- Maximum Speed T Axis
- 255 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
