GP Series

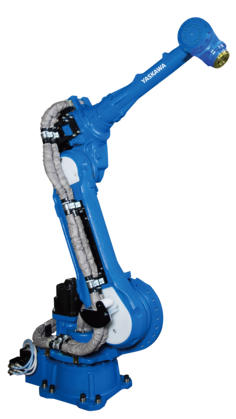

GP88
Multi-Purpose Handling Robot with 88 kg Payload
Overview
The GP88 is a compact 6-axis industrial robot with 88 kg payload, 2236 mm reach and excellent repeatability of +/- 0.03 mm. Equipped to handle high payloads for heavy part processing, the powerful six-axis GP88 robot increases productivity for a wide selection of tasks. While high moment and inertia ratings support large and heavy applications, exceptionally quick axis speeds and acceleration capabilities reduce cycle time. The compact design enables high-density robot placement in workcells. Pre-wired with sognal and pneumatic lines, the high-speed GP88 offers simple installation, easy operation and minimal maintenance for increased production output.
A version with high IP67 (sust and liquid proof) protection class is available for jobs in harsh environments.
The GP88 is perfect for a wide range of applications, including machine tending, material handling, material removal, assembly, additive manufacturing, dispensing and grinding/polishing.
Technical Details
- Number of Axes
- 6
- Payload
- 88 kg
- Max. Working Range
- 2236 mm
- Repeatability
- 0.03 mm
- Weight
- 630 kg
- Power Supply
- 4 kVA
- Maximum Speed S Axis
- 170 °/s
- Maximum Speed L Axis
- 140 °/s
- Maximum Speed U Axis
- 160 °/s
- Maximum Speed R Axis
- 230 °/s
- Maximum Speed B Axis
- 230 °/s
- Maximum Speed T Axis
- 350 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
