GP Series
GP8
General Purpose 6-Axis Handling Robots
Overview

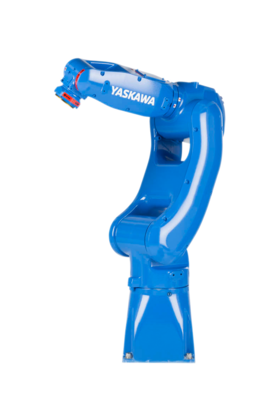

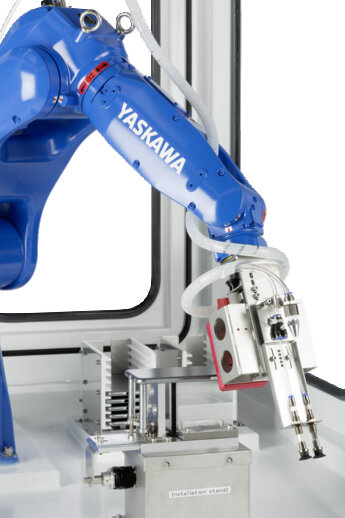

The MOTOMAN GP8, one of our most successful robot models ever, is an extremely agile, compact and universal robot with 8 kg payload, 727 mm reach and superior repeatability of +/- 0.01 mm. Our customers appreciate the performance of the GP8 in all kind of handling, assembly, pick&place and quality testing applications.
High IP 67 rating (dust and liquid protection) is standard, allowing the robot to work in harsh environments. The optional anti-corrosive coating (ACC) of the GP8 protects the robot in corrosive atmosphere such as acids, alkali and vapors. A GP8 food grade grease version and CR5 cleanroom class version is also available.
Technical Details
- Number of Axes
- 6
- Payload
- 8 kg
- Max. Working Range
- 727 mm
- Repeatability
- 0.01 mm
- Weight
- 35 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 455 °/s
- Maximum Speed L Axis
- 385 °/s
- Maximum Speed U Axis
- 520 °/s
- Maximum Speed R Axis
- 550 °/s
- Maximum Speed B Axis
- 550 °/s
- Maximum Speed T Axis
- 1000 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
