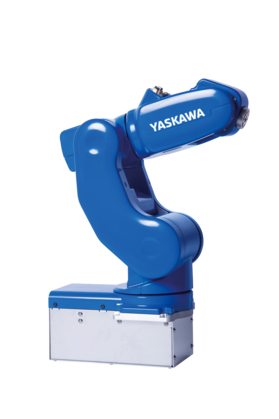

MotoMINI
MotoMINI
Small, lightweight, fast
Overview
The MotoMINI may be small, but it is definitely not a toy - it is a professional high speed industrial robot specially designed for handling and assembly of small work pieces.
Technical Details
- Number of Axes
- 6
- Payload
- 0.5 kg
- Max. Working Range
- 350 mm
- Repeatability
- 0.02 mm
- Weight
- 7 kg
- Power Supply
- 0.5 kVA
- Maximum Speed S Axis
- 315 °/s
- Maximum Speed L Axis
- 315 °/s
- Maximum Speed U Axis
- 420 °/s
- Maximum Speed R Axis
- 600 °/s
- Maximum Speed B Axis
- 600 °/s
- Maximum Speed T Axis
- 600 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
Downloads
| Name | |||
|
Flyer Robot MotoMINI RedDot
SMALL – LIGHTWEIGHT – FAST Data sheet | English |
Data sheet | English | |
|
Flyer Robot MotoMINI RedDot
KLEIN – LEICHT – SCHNELL Data sheet | German |
Data sheet | German | |
| MotoMINI 2D CAD/CAE | | CAD/CAE | ||
| MototMINI 3D CAD/CAE | | CAD/CAE | ||
| Flyer MotoMini Brochures | Spanish | Brochures | Spanish | |
|
Flyer Robot MotoMINI
Petit, léger et rapide Data sheet | French |
Data sheet | French |
