PL Series
PL800
Powerful Palletizing & Handling
Overview

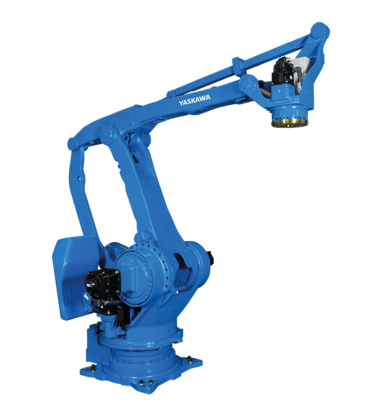

The MOTOMAN PL800 is the most powerful 4-axis robot of the PL-series with a payload of 800 kg. This palletizer offers high performance for box, carton and pack palletizing in versatile end-of-line packaging and logistics applications.
Its large working range with a maximum reach of 3159 mm and an achievable stacking height of over 2624 mm allows versatile use across all palletizing applications.
Technical Details
- Number of Axes
- 4
- Payload
- 800 kg
- Max. Working Range
- 3159 mm
- Repeatability
- 0.05 mm
- Weight
- 2560 kg
- Power Supply
- 8 kVA
- Maximum Speed S Axis
- 65 °/s
- Maximum Speed L Axis
- 65 °/s
- Maximum Speed U Axis
- 65 °/s
- Maximum Speed T Axis
- 125 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
