AR Series
AR900
Small Arc Welding Robot for compact welding cells
Overview

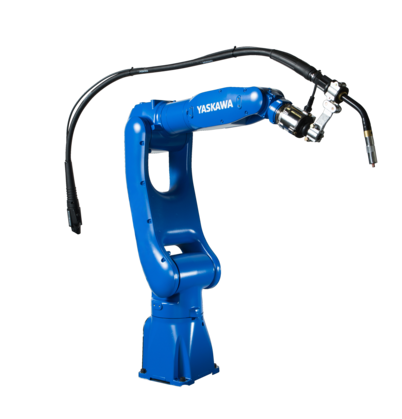

The compact MOTOMAN AR900 arc welding robot provides high path accuracy and great stability.

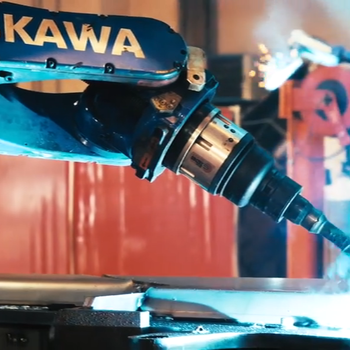

With a payload of up to 7 kg and a working range of 927 mm this robot enables accurate arc welding of small workpieces with high-quality results.
Supporting the full range of the well known MOTOMAN welding functionality, AR900 robots offer a good alternative to collaborative welding robots when batch sizes are higher and speed is required. They are doing a great job in our compact turnkey welding cells ArcWorld RS Micro and HS Mini.
Technical Details
- Number of Axes
- 6
- Payload
- 7 kg
- Max. Working Range
- 927 mm
- Repeatability
- 0.01 mm
- Weight
- 37 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 375 °/s
- Maximum Speed L Axis
- 315 °/s
- Maximum Speed U Axis
- 410 °/s
- Maximum Speed R Axis
- 550 °/s
- Maximum Speed B Axis
- 550 °/s
- Maximum Speed T Axis
- 1000 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
