MP3000iec Series
MP3300iec
Overview

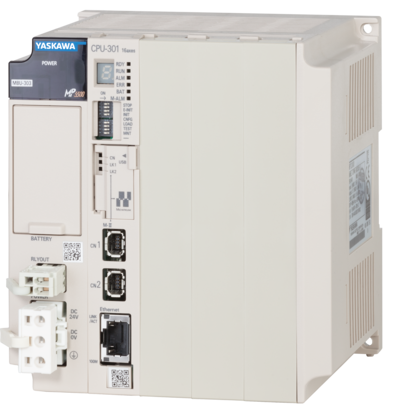

MP3300iec is a compact machine controller with 4, 8 or 20 axes of synchronized control.
IEC Programming Environment and Controller-Centric Commissioning using MECHATROLINK-III motion network
One software platform
- MotionWorks IEC, allows efficient programming and handling of applications within a standard IEC 61131-3 environment
- Advanced camming and gearing functions
- The MECHATROLINK-III open Ethernet based motion network (100 Mbps) enables machine configuration from a single location with one software tool. Using self-tuning abilities of a servo system commissioning time is greatly reduced.
- Open standards EtherNet/IP and Modbus TCP to connect to many HMI and PLC in the market
- The controller can operate local amplifier outputs. This reduces panel cost and space requirements when just a couple of outputs are necessary.
- Libraries enable importation of previously developed logic
A Multitude of Options
Choose from ten option cards offered for the expansion slot to accommodate most machine requirements.
Technical Details
- Input power supply
- x No
- Input power phases
- x No
- Controlled Axes
- 4, 8, 20, 32, 62
- Standards compliance
- cUL, CE, UL
- IEC Compliance
- ✓ Yes
- CPU Speed
- x No
- Number of Option Modules
- 8
- User Variable Memory
- x No
- Motion Network Fieldbus
- MECHATROLINK-III, Ethernet/IP
- Motion Network Channels
- x No
- Motion Network Connectors
- x No
- Ambient Temperature (Min)
- x No
- Ambient Temperature (Max)
- x No
- Max. Humidity (non-condensing)
- x No
- Max. Altitude (without Derating)
- x No
- Max. Altitude (with Derating)
- x No
Downloads
| Name | |||
|
MPiec Series - Machine Controller
Overview; Brochure No, YEU_MuC_MPiec_DE_V3 Brochures | German |
Brochures | German | |
|
MPiec Series - Machine Controller
Overview; Brochure No, YEU_MuC_MPiec_EN_V3 Brochures | English |
Brochures | English | |
|
MPiec Series - Machine Controller
Overview; Brochure No, YEU_MuC_MPiec_FR_V3 Brochures | French |
Brochures | French | |
|
Base Unit with DC Power Supply, 3 Slots, MP3300iec
JEPMC BU3303-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE | |
CAD/CAE | ||
|
Base Unit with DC Power Supply, 1 Slot, MP3300iec
JEPMC BU3304-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE | |
CAD/CAE | ||
|
Base Unit, 5 Slots, MP3200iec
JEPMC BUB3005-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE | |
CAD/CAE | ||
|
Base Unit, 8 Slots, MP3200iec
JEPMC BUB3008-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE | |
CAD/CAE | ||
|
CPU-201 Unit for MP3200
JEPMC CP3201-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE | |
CAD/CAE | ||
|
Power Supply 100 - 200 VAC Input, MP3200iec
JEPMC PSA3012-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE | |
CAD/CAE | ||
|
Replacement Power Supply Side Cover for MP3300iec
JEPMC OP3001-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE | |
CAD/CAE | ||
|
Power Supply 24 VDC Input, MP3200iec
JEPMC PSD3012-E, CAD Files contain DXF, EDRAW, IGES, PROE, SOLID and STEP formats CAD/CAE | |
CAD/CAE | ||
|
EPLAN Makros MPiec
MP2300Siec, MP23100iec, MP3200iec, Base Units, CPUs, IO Options, Power Supply Units, EPLAN | |
EPLAN | ||
|
YASKAWA MP3300iec Machine Controller Hardware Manual
PMC-U-MP33004, PMC-U-MP33008, PMC-U-MP33020, PMC-U-MP33104, PMC-U-MP33108, PMC-U-MP33120, PMC-U-MP33320, PMC-U-MP33332, PMC-U-MP33420, PMC-U-MP33432, PMC-U-MP33532, PMC-U-MP33562, PMC-U-MP33632, PMC-U-MP33662, PMC-U-MP33320-RBT, PMC-U-MP33532-RBT, PMC-U-MP33420-RBT, PMC-U-MP33632-RBT, Manual No. YAI-SIA-IEC-7, Published Dec 2022 Technical documentation | English |
Technical documentation | English | |
|
Machine Controller MECHATROLINK-Ⅲ Equipment Series | EU and UK Declaration of Conformity
Machine Controller MECHATROLINK-Ⅲ Equipment Series JEPMC-MT model JEPMC-MT*******-E JEPMC-GW model JEPMC-GW*******-E JAMSC- model JAMSC-********** DoC-No. 900-213-350 issued July 25th, 2022 Certification | English |
Certification | English | |
|
Declaration of Conformity MP3000iec Series
MP3200iec, MP3300iec, Document No. DOC_MP3xxxiec Published May 2017 Certification | |
Certification | ||
|
Machine Controller MP3000 Series | EU and UK Declaration of Conformity
Machine Controller MP3000 Series, Model MP3200 model JEPMC-************ MP3300 model JAPMC-CP33********* MP3300 model JAPMC-RM3301***-E MP3300 model JAPMC-SF2300-E*** MP3300 model JAPMC-MC23*****-E MP3300 model JAPMC-CM23*****-E MP3300 model JEPMC-BU33******* DoC-No. 900-212-255 issued July 25th, 2022 Certification | English |
Certification | English |
