SGLFW2
SGLFM2-1D306A
Models with F-Type Iron Cores
Yaskawa Europe Products Motion Control Linear servomotors SGLFW2 SGLFM2-1D306A
Overview

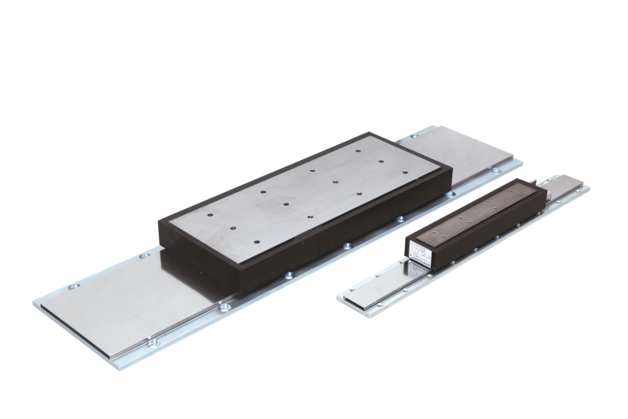

Iron core SGLFW2 linear servo motors are composed of moving coils with laminated iron-core and single-sided stationary magnet tracks. The entire coil unit is permanently encapsulated in a thermally conductive resin body to give structural rigidity. The magnet track is made of a row of magnets accurately placed on one side of the nickelized steel carrier plate. Stainless steel magnet covers guard against minor accidental damage to the magnets.
Technical Details
- Input power supply
- x No
- Core Type
- With F-Type Iron Core
- Type
- Magnetic Way
- Magnet Height
- 135 mm
- Length
- 306 mm
- Sensor
- x No
- Cooling method
- x No
- Connector For Servomotor Main Circuit Cable
- x No
- RoHS Certified
- x No
- Rated Force
- x No
- Instantaneous Peak Force
- x No
- Height
- 135 mm
- Width
- 175 mm
- Depth
- x No
- Weight
- 3.7 kg
