Advanced Safety Module

Overview

When it comes to safety, compromises are not an option. The Yaskawa Sigma-7 system easily integrates FSoE safety concepts. The Advanced Safety Module offers up to 16 safety functions. 10 functions can be controlled independently at the same time. This allows secure and easy control even for the most complex applications.

The Advanced Safety Module can be combined with a Sigma-7 400 V SERVOPACK FT91 EtherCAT to design optimum safety in a machine system according to industry needs.

You can choose between two modules. One with FailSafe over EtherCAT ® (FSoE) and no physical I/Os and one with FailSafe over EtherCAT ® (FSoE) and additional physical I/Os.

Technical Details

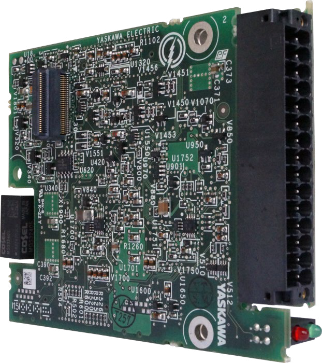

SGD7S-OSB01A

  • 14 safety functions
  • STO, SS1-r, SS1-t, SS2-r, SS2-t, SOS, SLS, SSM, SDI, SLP, SSR, SLI, SCA, SLA
  • 10 safety functions can work in parallel
  • FSoE

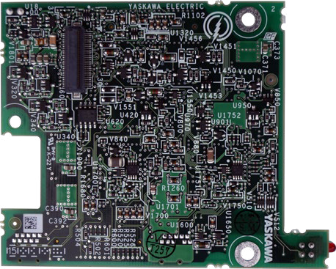

SGD7S-OSB02A

  • 16 safety functions + I/O Board
  • STO, SS1-r, SS1-t, SS2-r, SS2-t, SOS, SLS, SSM, SDI, SLP, SSR, SLI, SCA, SLA, SMT, SLT
  • 6x I/O Dual channel SIL3/Ple Cat3
    • 4 safe digital input/output channels
    • 1 safe digital input
    • 1 safe analog input channel (0-10V)/ digital input
  • 2x I/O single channel SIL2/PLd Cat3
    • 1 analog input channel (PT1000)
    • 1 analog input channel (4-20 mA)
  • 10 safety functions can work in parallel
  • FSoE



Accessories

In order to setup the Advanced Safety Module, the software tool "Advanced Safety Module Parameter Editor" is required. This certified editor is used to configure the safety functions running on the Sigma-7 Safety Option Module (SGD7S-OSB01A or SGD7S-OSB02A).

Please note that this software tool is designed to be used by a Safety Engineer or equivalently skilled person.

The Advanced Parameter Module Editor can be downloaded here:

<Get the software now>

The Advanced Parameter Module Editor is protected by a password.

Please use the following link to to receive your password:

<Obtain the activation Password now>

In case the link above does not work, please write an e-mail to <Functional-Safety@yaskawa.eu.com> with subject "ASM7PW" and content "Please send me a password for the Advanced Safety Module Parameter Editor!"

Please note that your personal data will be stored by Yaskawa as part of the licensing process.
By sending this email you agree that your email address will be stored for as long as you use the hardware, at the latest after the lifetime of the hardware has expired.

For further questions regarding data protection, please refer to our privacy policy : https://www.yaskawa.eu.com/meta/privacy-statement

Additional Accessories

JUSP-7CN21

 Safety I/O Connector (for SGD7S-OSB02A only)

JZSP-P7R2-8-E

 Mounting rail for option cards Sigma-7 400 V

  • For Servopack
  • x No
