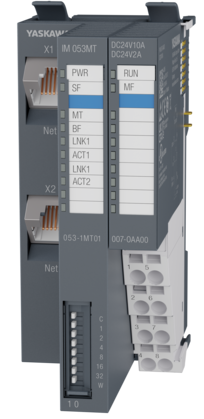

IM 053 - Modbus/TCP-Slave - 053-1MT01

The Smart Control and I/O System

Overview

IM 053 - Modbus/TCP-Slave - 053-1MT01

Ordercode: 053-1MT01

  • 2-Port Switch RJ45 100BaseTX fullduplex
  • Up to 64 peripheral modules
  • Supports FMM (Free Module Mapping)
  • Various diagnostics functions
  • Integrated DC 24V power supply for power and electronic section supply of the periphery modules
  • Supports HotConnect, Easy Maintenance
  • Web server integrated
  • Status LEDs

Technical Details

  • Input power supply
  • 24 V
  • Input Voltage
  • x No
  • Current Consumption
  • 0.95 A
  • Max. current drain at backplane bus
  • 3 A
  • Max. current drain load supply
  • 10 A
  • Current consumption from backplane bus
  • x No
  • Current consumption from load voltage L+ (without load)
  • x No
  • Power Loss
  • 3 W
  • Number of inputs (digital)
  • x No
  • Rated load voltage (digital)
  • x No
  • Current consumption from load voltage L+ (without load)
  • x No
  • Signal logic input (digital)
  • x No
  • Input characteristic curve (digital)
  • x No
  • Initial data size (digital)
  • x No
  • Number of outputs (digital)
  • x No
  • Rated load voltage (digital output)
  • x No
  • Current consumption from load voltage L+ (without load)
  • x No
  • Signal logic output (digital)
  • x No
  • Output data size (digital)
  • x No
  • Number of inputs (analog)
  • x No
  • Rated load voltage (analog)
  • x No
  • Current consumption from load voltage L+ (without load)
  • x No
  • Voltage inputs (analog)
  • x No
  • Current inputs (analog)
  • x No
  • Resolution in bit
  • x No
  • Measurement principle
  • x No
  • Basic conversion time
  • x No
  • Initial data size
  • x No
  • Number of outputs (analog)
  • x No
  • Output voltage ranges
  • x No
  • Output current ranges
  • x No
  • Resolution in bit (analog)
  • x No
  • Conversion time (analog)
  • x No
  • Output data size (analog)
  • x No
  • Number of counters
  • x No
  • Counter width
  • x No
  • Maximum input frequency
  • x No
  • Maximum count frequency
  • x No
  • Maximum count frequency
  • x No
  • Maximum count frequency
  • x No
  • Maximum count frequency
  • x No
  • Number of channels
  • x No
  • Input voltage (rated value)
  • x No
  • Power stage
  • x No
  • PWM frequency
  • x No
  • Type of encoder
  • x No
  • Encoder frequency
  • x No
  • Encoder resolution (internal)
  • x No
  • Control type
  • x No
  • Terminal voltage max.
  • x No
  • Terminal current max.
  • x No
  • Total current per module, max.
  • x No
  • Number of clamps
  • x No
  • Binding of potential
  • x No
  • Point-to-point protocol
  • x No
  • Encoder Supply: Number of outputs (L+n)
  • x No
  • Rated output current
  • x No
  • Port mode
  • x No
  • Load memory, integrated
  • x No
  • Work memory, integrated
  • x No
  • Work memory, maximal
  • x No
  • Memory card slot
  • x No
  • Racks, max.
  • 1
  • Modules per rack, max.
  • x No
  • Fieldbus
  • Modbus / TCP/IP
  • Connector
  • 2 x RJ45
  • Topology
  • Line Star, Line
  • Transmission speed, max.
  • 100 Mbit/s
  • Address range inputs, max.
  • 1000 Byte
  • Address range outputs, max.
  • 1000 Byte
  • Material
  • PPE / PPE GF10
  • Mounting
  • Profile rail 35 mm
  • Weight
  • 48.5 mm
  • Height
  • 109 mm
  • Depth
  • 76.5 mm
  • Net weight
  • 160 g
  • Gross weight
  • 175 g
  • Certifications
  • UL certification, KC certification, UKCA certification, ChinaRoHS certification
  • Safety protocol
  • x No
  • Safety requirements
  • x No
  • Circuit monitoring
  • x No
  • Max. operating temperature
  • 60 °C
