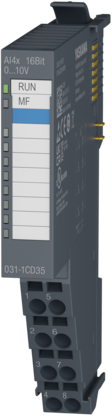

SM 031 - Analog Input - 031-1CD35

• Input power supply
• x No

• Input Voltage
• x No

• Current Consumption
• x No

• Max. current drain at backplane bus
• x No

• Max. current drain load supply
• x No

• Current consumption from backplane bus
• 65 mA

• Current consumption from load voltage L+ (without load)
• x No

• Power Loss
• 0.9 W

• Number of inputs (digital)
• x No

• Rated load voltage (digital)
• x No

• Current consumption from load voltage L+ (without load)
• x No

• Signal logic input (digital)
• x No

• Input characteristic curve (digital)
• x No

• Initial data size (digital)
• x No

• Number of outputs (digital)
• x No

• Rated load voltage (digital output)
• x No

• Current consumption from load voltage L+ (without load)
• x No

• Signal logic output (digital)
• x No

• Output data size (digital)
• x No

• Number of inputs (analog)
• 4

• Rated load voltage (analog)
• 24 V

• Current consumption from load voltage L+ (without load)
• 25 mA

• Voltage inputs (analog)
• ✓ Yes

• Current inputs (analog)
• x No

• Resolution in bit
• 16 bit

• Measurement principle
• successive approximation

• Basic conversion time
• 0.48 ms

• Initial data size
• x No

• Number of outputs (analog)
• x No

• Output voltage ranges
• x No

• Output current ranges
• x No

• Resolution in bit (analog)
• x No

• Conversion time (analog)
• x No

• Output data size (analog)
• x No

• Number of counters
• x No

• Counter width
• x No

• Maximum input frequency
• x No

• Maximum count frequency
• x No

• Maximum count frequency
• x No

• Maximum count frequency
• x No

• Maximum count frequency
• x No

• Number of channels
• x No

• Input voltage (rated value)
• x No

• Power stage
• x No

• PWM frequency
• x No

• Type of encoder
• x No

• Encoder frequency
• x No

• Encoder resolution (internal)
• x No

• Control type
• x No

• Terminal voltage max.
• x No

• Terminal current max.
• x No

• Total current per module, max.
• x No

• Number of clamps
• x No

• Binding of potential
• x No

• Point-to-point protocol
• x No

• Encoder Supply: Number of outputs (L+n)
• x No

• Rated output current
• x No

• Port mode
• x No

• Load memory, integrated
• x No

• Work memory, integrated
• x No

• Work memory, maximal
• x No

• Memory card slot
• x No

• Racks, max.
• x No

• Modules per rack, max.
• x No

• Fieldbus
• x No

• Connector
• x No

• Topology
• x No

• Transmission speed, max.
• x No

• Address range inputs, max.
• x No

• Address range outputs, max.
• x No

• Material
• PPE / PPE GF10

• Mounting
• Profile rail 35 mm

• Weight
• 12.9 mm

• Height
• 109 mm

• Depth
• 76.5 mm

• Net weight
• 61 g

• Gross weight
• 75 g

• Certifications
• ChinaRoHS certification, UL certification, KC certification, UKCA certification

• Safety protocol
• x No

• Safety requirements
• x No

• Circuit monitoring
• x No

• Max. operating temperature
• 60 °C
