Overview

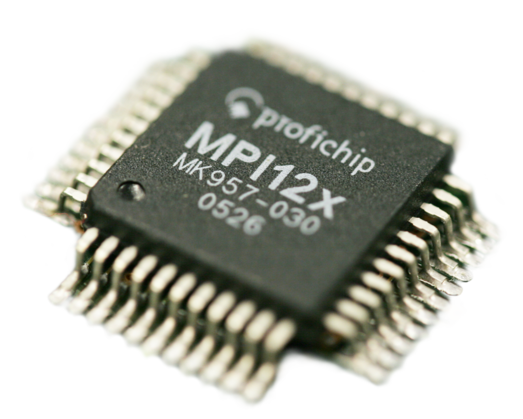

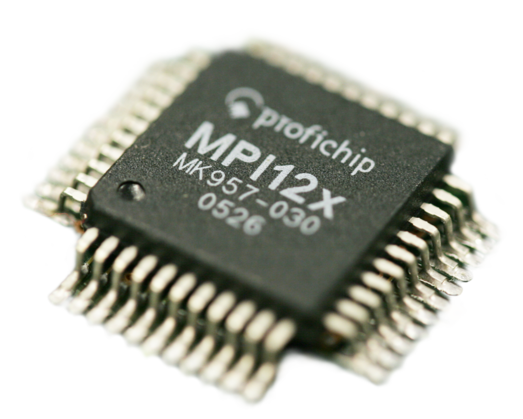

The MPI12x is a combined communication ASIC with an 8-Bit microprocessor interface, for MPI and PROFIBUS-DP slave applications.

Operation
The MPI12x handles message and address identification, data security sequences and protocol processing for PROFIBUS, the underlying transport protocol. Token handling, error detection and data pre-processing are carried out automatically, relieving the host processor of all time-critical and time-consuming calculation tasks.

Data transmission

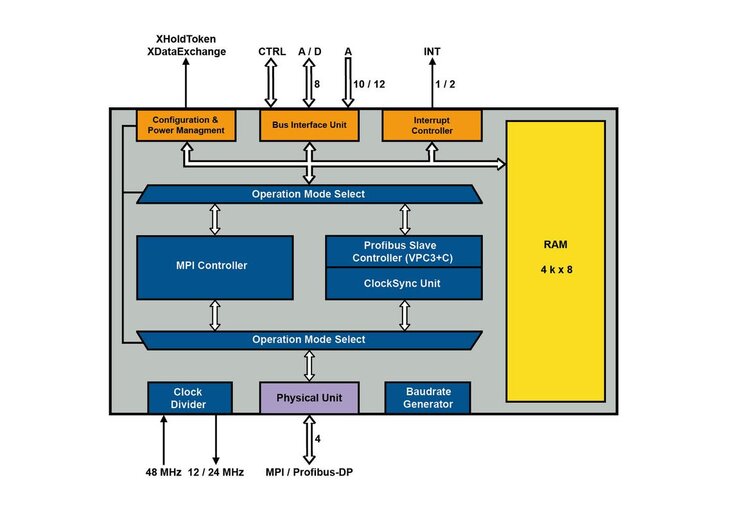

The support of data transmission rates up to 12 Mbit/s, the hardware integrated PROFIBUS protocol, the 4 KByte communication RAM and the configurable microprocessor-interface are features to create high-performance MPI applications.
The well known VPC3-series PROFIBUS-DP-Slave core (DP-V2 service, clock-synchronization) is also integrated.


• MPI communication up to 12MBit/s incl. token and low-level PROFIBUS handling

• Additional PROFIBUS-DP slave core (VPC3+C compatible)

• 4kB integrated SRAM

• Configurable 8-Bit µcontroller interface

• 3.3V single supply voltage / 5V tolerant inputs

• Software stack

• Package PQFP44 (RoHS compliant)
