Overview

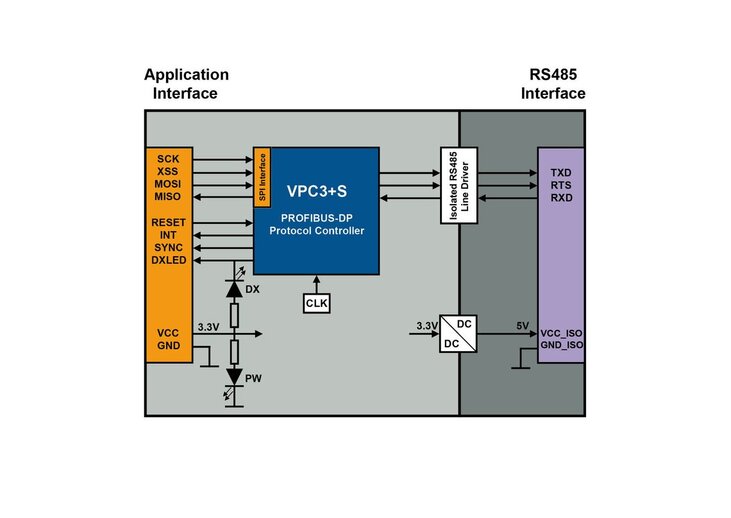

PROFIBUS DP Slave Modules with Serial Interface
- VPC3+S based
- SPI interface (up to 6 Mbit/s)
- Isolated RS485-interface up to 12 Mbit/s
- Status LEDs for power and DataExchange
- Vcc 3.3V
- Supporting PROFIBUS-DP-V0, DP-V1 and DP-V2
- 4 kByte communication RAM

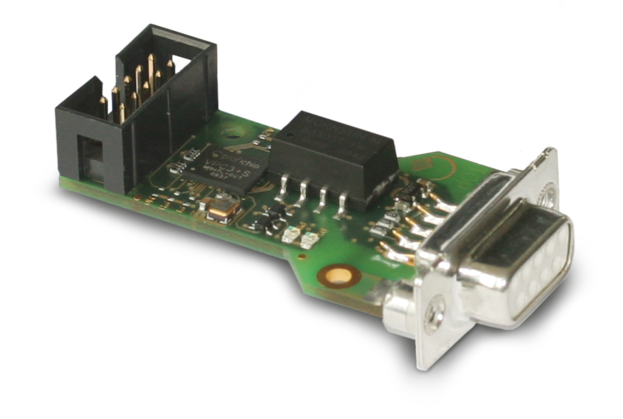

proficonn-DSUB
- With 9-pin DSUB-connector for direct enclosure mounting
- Flat cable connector for SPI communication and power supply
- Dimensions: 58 x 31 x 16 mm
proficonn-DIP28
- 28 pin Dual-Inline-Package format
- SPI and I²C interface
- PCB mounting via standard IC socket
- Dimensions: 36 x 18 x 10 mm
