GP Series

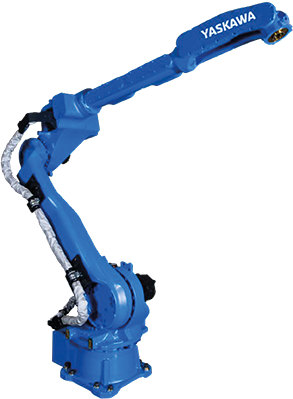

GP20HL
Ultra-Long-Arm Handling Robot with 3.1m reach and 20kg Payload
Overview
The six-axis MOTOMAN GP20HL robot combines a unique long reach of 3.124 mm with a payload capability of 20kg, by keeping an excellent repeatability precision of less than +/- 0.07 mm.
The GP20HL combines precision, world-leading path performance, speed and functionality. Equipped with latest generation Sigma-7 Servo drive & control technology, the GP20HL achieves best cycle times avoiding vibrations.
Typical applications for this robot include handling of very large and flat workpieces, interior car body sealing or the spray application of glue on carpets or insulating material.
Technical Details
- Number of Axes
- 6
- Payload
- 20 kg
- Max. Working Range
- 3124 mm
- Repeatability
- 0.07 mm
- Weight
- 560 kg
- Power Supply
- 4 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 180 °/s
- Maximum Speed U Axis
- 180 °/s
- Maximum Speed R Axis
- 400 °/s
- Maximum Speed B Axis
- 430 °/s
- Maximum Speed T Axis
- 630 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
