GP Series

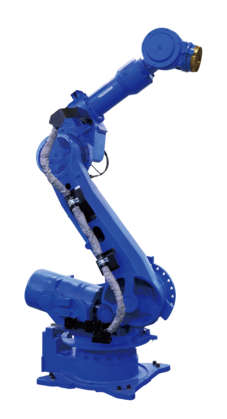

GP280

Compact Multi-Purpose Handling Robot with 280 kg Payload

Overview

The MOTOMAN GP280 handling robot provides a high payload capability of 280 kg and a compact reach of 2,446 mm, combined with an excellent repeatability precision of +/- 0,05 mm.

This six-axis GP280 robot provides fast and accurate performance to boost productivity for high-payload handling applications. Featuring a wide work envelope, this robot uses a streamlined upper arm for easy access to parts in confined spaces. While the wide wrist motion range reduces interference with fixtures, the reduced interference design enables close proximity placement of robots. The latest generation high-performance Sigma7 servo drive technology is leading to fast axis speeds and powerful acceleration. A high moment and inertia wrist enables the GP280 robot to efficiently handle larger and heavier payloads for superior performance.

The GP280 is perfect for a big variety of applications, such as Material Handling, (Remote) Laser Welding, Spot Welding, Machine Tending and (due to its excellent mechanical stiffness) also for Material Cutting/Trimming, Roller Hemming or Friction Stir Welding.

The GP280 is often used for workpiece handling in "Jigless" Welding Application, where the robot replaces a fixture.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 280 kg
  • Max. Working Range
  • 2446 mm
  • Repeatability
  • 0.05 mm
  • Weight
  • 1300 kg
  • Power Supply
  • 5 kVA
  • Maximum Speed S Axis
  • 90 °/s
  • Maximum Speed L Axis
  • 80 °/s
  • Maximum Speed U Axis
  • 90 °/s
  • Maximum Speed R Axis
  • 115 °/s
  • Maximum Speed B Axis
  • 110 °/s
  • Maximum Speed T Axis
  • 190 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
