GP Series
GP400R
Heavy-Payload Shelf Type Robot with 400 kg Payloas
Overview

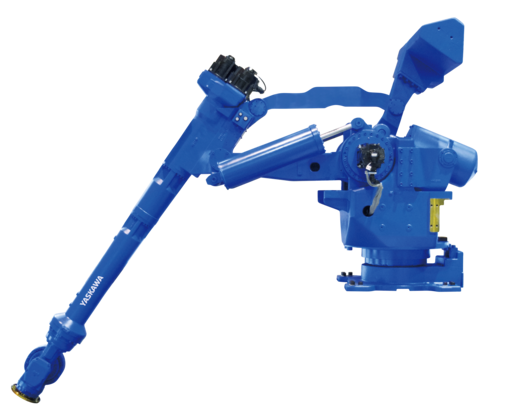

The shelf-mounted MOTOMAN GP400R robot provides an impressive combination of 400 kg payload and 3.5 m reach, with an outstanding repeatability precision of better than +/- 0.1 mm. As being a shelf-type robot, the motion range is extended for working below the robot base level, allowing to the robot to be installed on a raised steel structure to save floor space.
Designed with extremely fast axis speeds and parallel-link construction to expertly perform heavy-payload tasks, the six-axis GP400R is ideal for heavy part handling, machine and press tending.
Engineered for simple installation, easy operation and minimal maintenance, this robot features a wide work envelope, along with high moment and inertia ratings for the accommodation of large, heavy parts. A streamlined upper arm provides easy access to parts in tight spaces, and a reduced interference design allows the robot to be placed closer to workpieces and machines, optimizing floorspace. Equipped with heavy-duty bearings for smooth arm rotation, the GP400R is a perfect choice to fulfill a variety of heavy-payload needs.
Our customers are preferring this robot for Machine Tending (large CNC and Injection Moulding Machines), Wood & Furniture Handling and Packaging, Press Tending and Handling Applications in Automotive and Agricultural or Construction Machinery.
Technical Details
- Number of Axes
- 6
- Payload
- 400 kg
- Max. Working Range
- 3518 mm
- Repeatability
- 0.1 mm
- Weight
- 3560 kg
- Power Supply
- 7 kVA
- Maximum Speed S Axis
- 80 °/s
- Maximum Speed L Axis
- 80 °/s
- Maximum Speed U Axis
- 80 °/s
- Maximum Speed R Axis
- 80 °/s
- Maximum Speed B Axis
- 80 °/s
- Maximum Speed T Axis
- 160 °/s
- Mounting Options
- Shelf-Mounted
- Further Specifications
- x No
