GP FGG Series

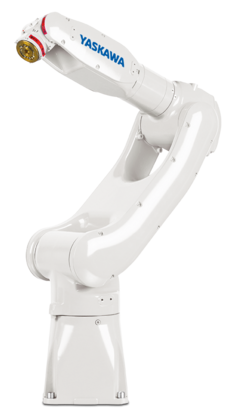

GP7 FGG

Agile 6-Axis Robot for Food Handling Applications

Overview

The GP7 FGG is a compact and agile 6-axis robot with 7 kg payload, 927 mm reach and outstanding repeatability of +/- 0.01 mm.

Due to latest Sigma7 Servo Technology, the GP7 FGG provides excellent axis speeds and accelerations. Specifications like high IP65/67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints, and a a special drip proof coating allows the robot to be used in certain food related applications. Media wiring for grippers is lead through the arm, with several connecting option on the robot arm and wrist. The connection cables on the robot base can be lead either from the side or from below through the base plate.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 7 kg
  • Max. Working Range
  • 927 mm
  • Repeatability
  • 0.01 mm
  • Weight
  • 37 kg
  • Power Supply
  • 1 kVA
  • Maximum Speed S Axis
  • 375 °/s
  • Maximum Speed L Axis
  • 315 °/s
  • Maximum Speed U Axis
  • 410 °/s
  • Maximum Speed R Axis
  • 550 °/s
  • Maximum Speed B Axis
  • 550 °/s
  • Maximum Speed T Axis
  • 1000 °/s
  • Mounting Options
  • x No
  • Further Specifications
  • x No
