MotoMINI
MotoMINI
Small, lightweight, fast
Overview

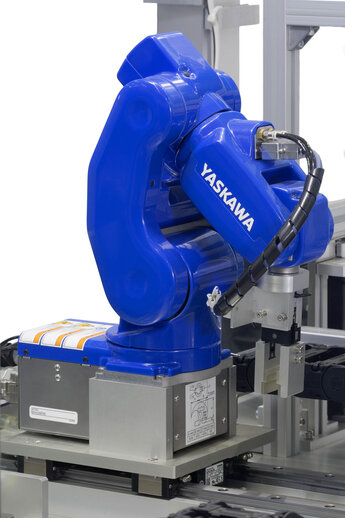

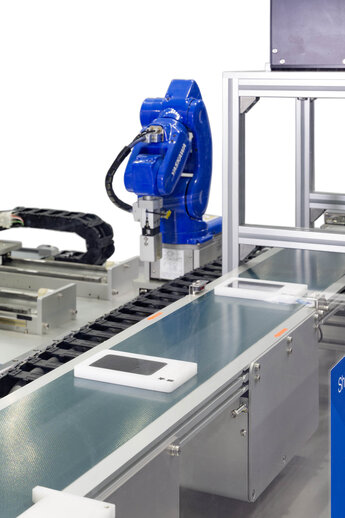

The MotoMINI may be small, but it is definitely not a toy - it is a professional high speed industrial robot specially designed for handling and assembly of small work pieces.
Technical Details
- Number of Axes
- 6
- Payload
- 0.5 kg
- Max. Working Range
- 350 mm
- Repeatability
- 0.02 mm
- Weight
- 7 kg
- Power Supply
- 0.5 kVA
- Maximum Speed S Axis
- 315 °/s
- Maximum Speed L Axis
- 315 °/s
- Maximum Speed U Axis
- 420 °/s
- Maximum Speed R Axis
- 600 °/s
- Maximum Speed B Axis
- 600 °/s
- Maximum Speed T Axis
- 600 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
