SDA Series

SDA20F

Dual Arm Robots

Overview

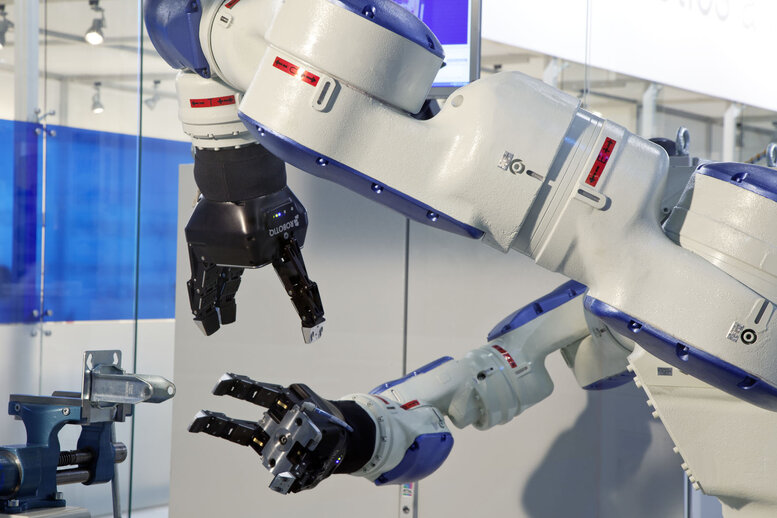

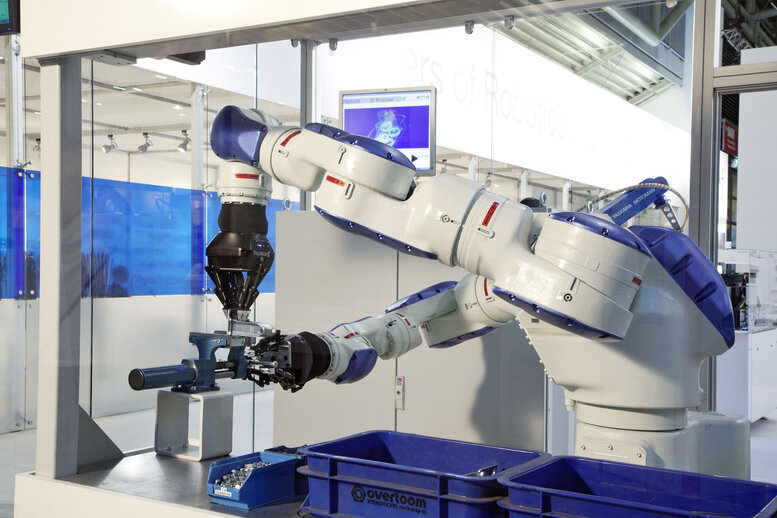

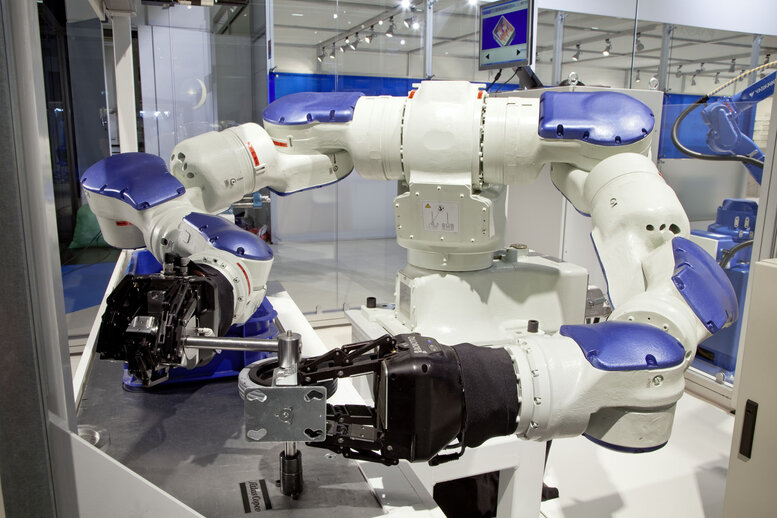

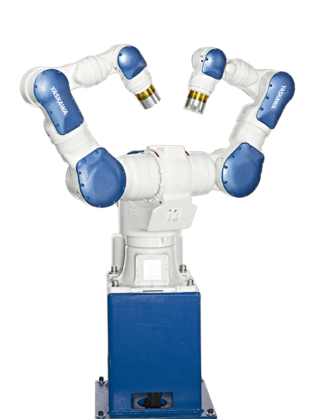

The SDA20F is a dual-arm, 15-axis robot designed with a payload of 20 kg and reach of 1.323 mm per arm, perfect for complex assembly and small part material handling applications. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms. The FS100 is a powerful controller with unmatched open software architecture. Superior dexterity and best-in-class wrist characteristics make slim, dual-arm robot ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks that formerly could only be done by people.

For the SDA20F, there is an IP54/65/67 version available (high dust and liquid proof arms and wrists).

Technical Details

  • Number of Axes
  • 15
  • Payload
  • 20 kg
  • Max. Working Range
  • 1323 mm
  • Repeatability
  • 0.1 mm
  • Weight
  • 380 kg
  • Power Supply
  • 4.4 kVA
  • Maximum Speed S Axis
  • 125 °/s
  • Maximum Speed L Axis
  • 130 °/s
  • Maximum Speed U Axis
  • 170 °/s
  • Maximum Speed R Axis
  • 170 °/s
  • Maximum Speed B Axis
  • 200 °/s
  • Maximum Speed T Axis
  • 400 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
