SDA Series

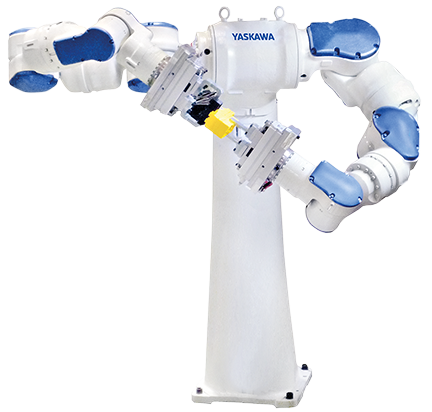

SDA5F
Dual Arm Robot with 2x 5kg Payload
Overview
The SDA5F is a dual-arm, 15-axis robot designed for complex assembly and small part material handling applications. Both arms can work together dramatically simplifying end-of-arm tooling. Designed with patented servo actuators, all cables are routed through the arms. The FS100 is a powerful controller with unmatched open software architecture. Superior dexterity and best-in-class wrist characteristics make slim, dual-arm robot ideally suited for assembly, part transfer, machine tending, packaging and other handling tasks that formerly could only be done by people.
Technical Details
- Number of Axes
- 15
- Payload
- 5 kg
- Max. Working Range
- 845 mm
- Repeatability
- 0.06 mm
- Weight
- 110 kg
- Power Supply
- 1.4 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 200 °/s
- Maximum Speed U Axis
- 200 °/s
- Maximum Speed R Axis
- 200 °/s
- Maximum Speed B Axis
- 230 °/s
- Maximum Speed T Axis
- 350 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
