MPP Series
MPP3S
High Speed Delta Robots
Overview

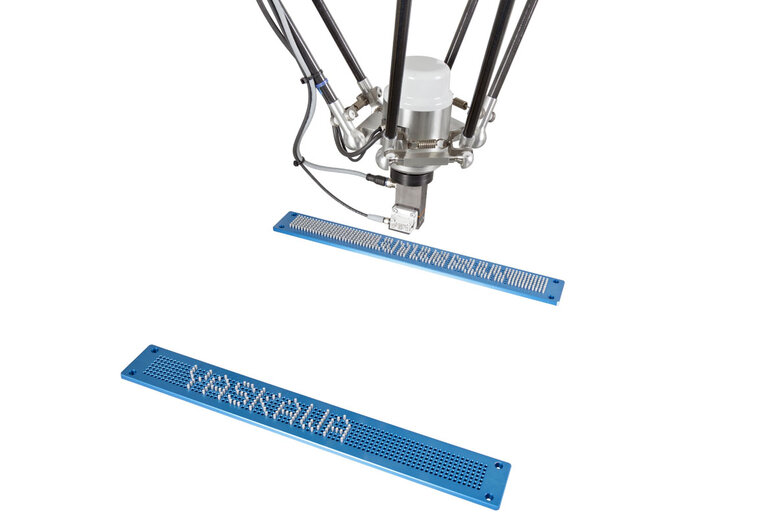

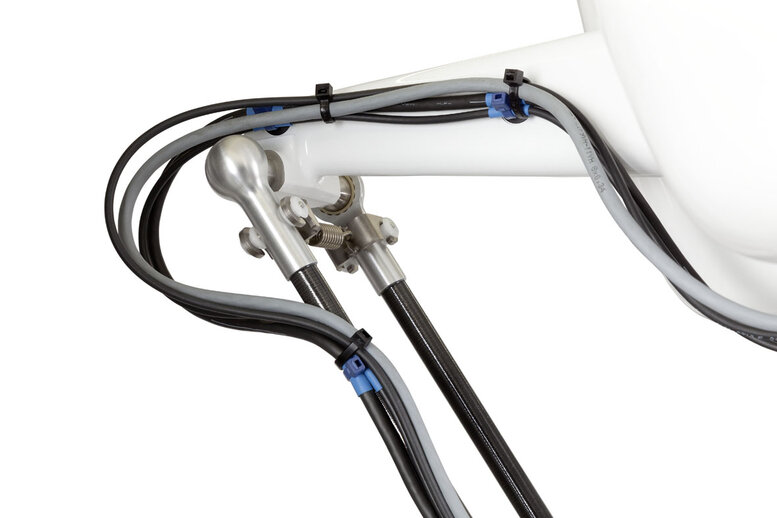

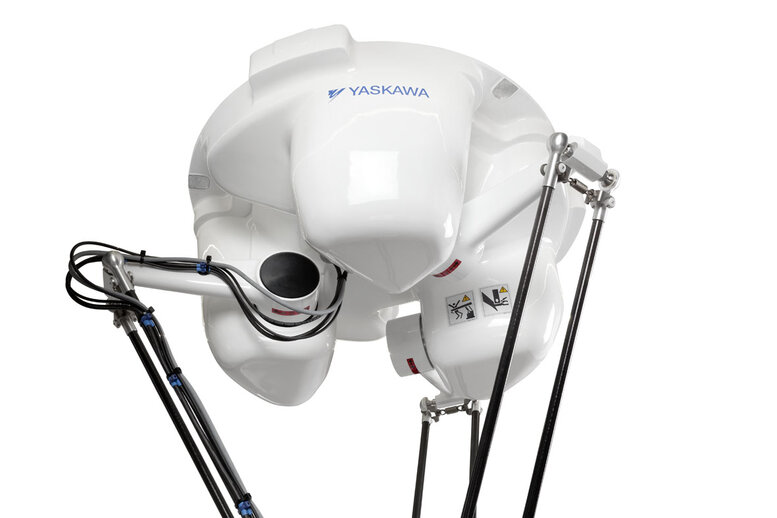

The MOTOMAN MPP3S is a Delta robot with a maximum payload of 3 kg and a recommended range of motion (Ø 580 x H 300 mm). Strongly depending on the payload and the motion pattern, the MPP3H can typically achieve impressive speeds of 2 to 4 cycles/second. The MPP3H is ISO Cleanroom Class 5 certified and IP67 protected (dust and liquid proof).
MPP3H robots are perfect for pick&place applications in Food, Life Sciences, Medical.
Technical Details
- Number of Axes
- 4
- Payload
- 3 kg
- Max. Working Range
- 800 mm
- Repeatability
- 0.1 mm
- Weight
- 95 kg
- Power Supply
- 1.5 kVA
- Maximum Speed S Axis
- x No
- Maximum Speed L Axis
- x No
- Maximum Speed U Axis
- x No
- Maximum Speed R Axis
- x No
- Maximum Speed B Axis
- x No
- Maximum Speed T Axis
- x No
- Mounting Options
- Ceiling
- Further Specifications
- x No
Downloads
| Name | |||
|
Flyer Robot MPP3S
Flyer, datasheet, brochure robot MPP3S Data sheet | English |
Data sheet | English | |
|
Flyer Robot MPP3S
Flyer, Datenblatt, Prospekt Roboter MPP3S Data sheet | German |
Data sheet | German | |
| MPP3S_2D CAD/CAE | | CAD/CAE | ||
| MPP3S_3D-Iges-step CAD/CAE | | CAD/CAE | ||
| MPP3S_3D-jt CAD/CAE | | CAD/CAE |
