MPX Series
MPO10
Türöffner-Roboter für die Lackierung von Automobilkarosserien
Overview

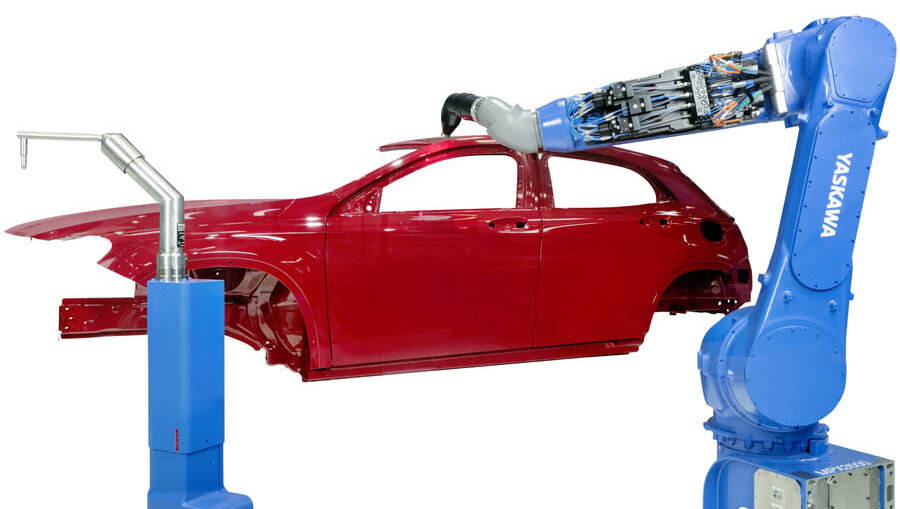

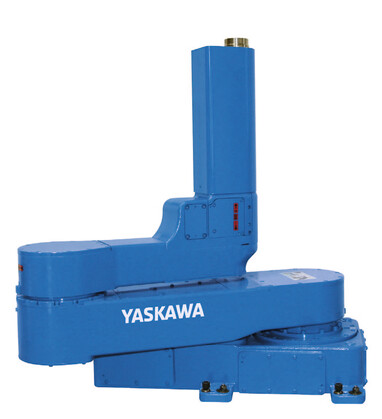

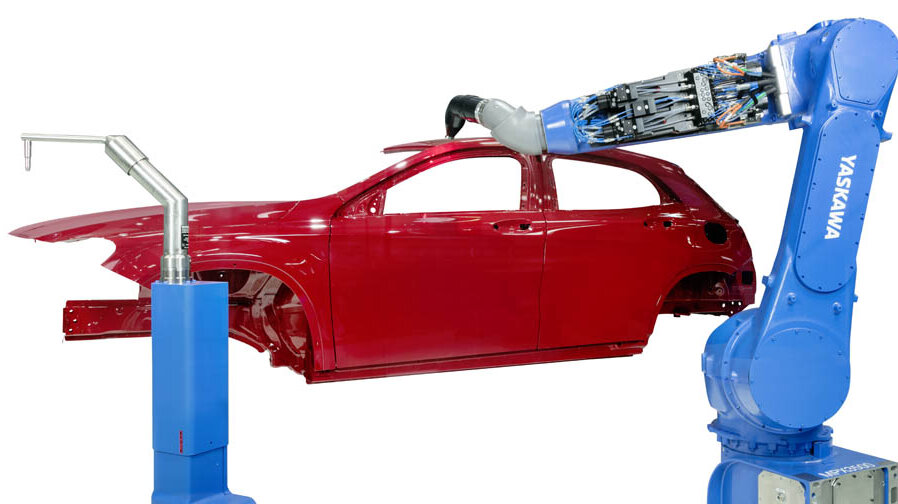

The MOTOMAN MPO10 has a payload of 10 kg and a reach of up to 1,400 mm. Equipped with a door opening hook (optional), it is used to open vehicle body doors, hold them in position and close them again during paint shop operations (optional with force control of the door position).
Technical Details
- Number of Axes
- 3
- Payload
- 10 kg
- Max. Working Range
- 1400 mm
- Repeatability
- 0.15 mm
- Weight
- 350 kg
- Power Supply
- 1.3 kVA
- Maximum Speed S Axis
- 130 °/s
- Maximum Speed L Axis
- 130 °/s
- Maximum Speed U Axis
- x No
- Maximum Speed R Axis
- x No
- Maximum Speed B Axis
- x No
- Maximum Speed T Axis
- x No
- Mounting Options
- Floor
- Further Specifications
- x No
Downloads
| Name | |||
|
Flyer Robot MPO10
Compact door opener manipulator with 3 motion axes Data sheet | English |
Data sheet | English | |
|
Flyer Robot MPO10
Kompakter Türöffner-Manipulator mit 3 Bewegungsachsen Data sheet | German |
Data sheet | German | |
| MPO10 2D CAD/CAE | | CAD/CAE | ||
| MPO10 3D CAD/CAE | | CAD/CAE |
