MPX Series

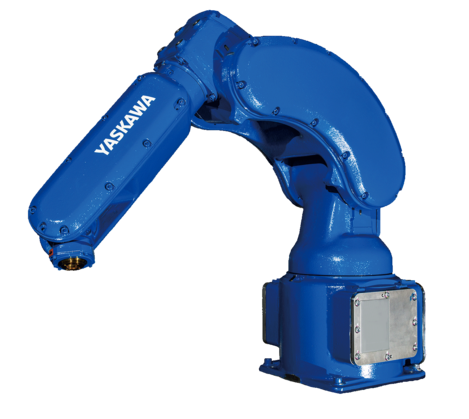

MPX1150
Compact 6-Axis Painting Robot for small Workpieces
Overview
The compact MOTOMAN MPX1150 robot was developed especially for painting of small workpieces. It provides a payload of 5 kg for mounting multiple guns and small bell models. Teh very compact design helps keeping the size of the paint booth small. The S/L axis is designed with no offset to enable installation of the manipulator closer to a work piece. The robot can be mounted on the floor, wall or ceiling and has three selectable access points for power cables.
Technical Details
- Number of Axes
- 6
- Payload
- 5 kg
- Max. Working Range
- 727 mm
- Repeatability
- 0.02 mm
- Weight
- 57 kg
- Power Supply
- 1 kVA
- Maximum Speed L Axis
- x No
- Maximum Speed U Axis
- x No
- Maximum Speed R Axis
- x No
- Maximum Speed B Axis
- x No
- Maximum Speed T Axis
- x No
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
Downloads
| Name | |||
|
Flyer Robot MPX1150
Small Robot optimized for Painting Data sheet | English |
Data sheet | English | |
|
Flyer Robot MPX1150
Kleinroboter speziell für Lackieranwendungen Data sheet | German |
Data sheet | German | |
| MPX1150 2D CAD/CAE | | CAD/CAE | ||
| MPX1150 3D CAD/CAE | | CAD/CAE |
