MPX Series
MPX2600
Medium-sized Robot for flexible Painting
Overview

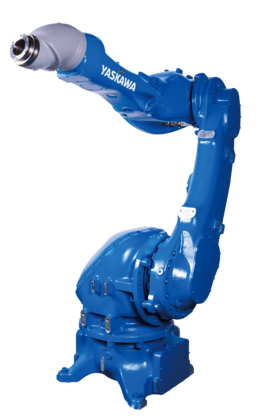

The MOTOMAN MPX2600 painting robot provides a payload of 15 kg, and another 20kg payload capability on the U-Arm, which enables mounting of a large variety of guns and large bells on this medium-sized robot. The smooth arm design with a large hollow diameter is optimal for tubing and can prevent interferences among paint and air tubes.
Using the leakage compensation method to achieve positive pressure inside the enclosure, the air consumption is lower compared to the conventional air flow method. The MOTOMAN MPX2600 can be mounted on the floor, wall or ceiling and has three selectable access points for power cables. The S/L axis is designed with no offset to enable the effective use of the area under the arm and closer installation to a work piece.
Technical Details
- Number of Axes
- 6
- Payload
- 15 kg
- Max. Working Range
- 2000 mm
- Repeatability
- 0.2 mm
- Weight
- 485 kg
- Power Supply
- 3 kVA
- Maximum Speed S Axis
- x No
- Maximum Speed L Axis
- x No
- Maximum Speed U Axis
- x No
- Maximum Speed R Axis
- x No
- Maximum Speed B Axis
- x No
- Maximum Speed T Axis
- x No
- Mounting Options
- x No
- Further Specifications
- x No
