SP Series
SP80
Compact Spot Welding & Handling Robot
Overview

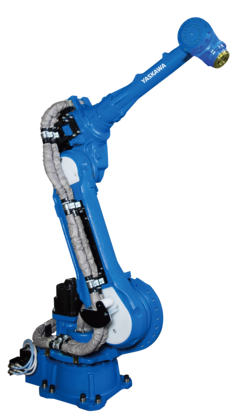

The MOTOMAN SP80 is the smallest spot welding and handling robot of the MOTOMAN SP series. It provides 80 kg payload (including C-adapter) and 2236 mm working range for servo-controlled lightweight welding guns.
This robot is suitable for compact spot welding lines in car body construction with high robot density, for economical welding of small subassemblies, and for space-saving installation on a positioner.
The MOTOMAN SP80 is controlled by the compact and powerful MOTOMAN YRC1000 controller and features the latest Yaskawa Sigma-7 servo drive technology which offers high dynamics and energy efficiency, and enables outstanding cycle times.
- Extra slim design
- Large working range
Technical Details
- Number of Axes
- 6
- Payload
- 80 kg
- Max. Working Range
- 2236 mm
- Repeatability
- 0.03 mm
- Weight
- 630 kg
- Power Supply
- 4 kVA
- Maximum Speed S Axis
- 170 °/s
- Maximum Speed L Axis
- 140 °/s
- Maximum Speed U Axis
- 160 °/s
- Maximum Speed R Axis
- 230 °/s
- Maximum Speed B Axis
- 230 °/s
- Maximum Speed T Axis
- 350 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
