GP Series

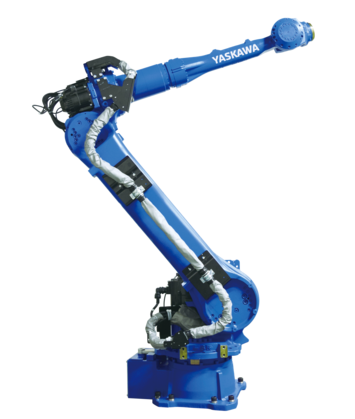

GP35L
Multi-Purpose Handling Robot with 2.5 m Reach
Overview
The MOTOMAN GP35L is a highly versatile 6-axis industrial robot with a 35 kg payload, extended reach (2.538 mm), and outstanding repeatability of +/- 0.07 mm.
The GP35L robot is offering a perfectly tuned payload/speed/wrist allowable moment combination, for impressive speed and acceleration performance. The small footprint, slim arm design allows for minimum installation space and minimize interference with peripheral devices.
A version with high IP65/67 (dust & liquid protection) is available, for operation in harsh environments.
The GP35L is perfect for a wide range of applications, perfect for machine tending, material handling, material removal, assembly, additive manufacturing or dispensing.
Technical Details
- Number of Axes
- 6
- Payload
- 35 kg
- Max. Working Range
- 2538 mm
- Repeatability
- 0.07 mm
- Weight
- 600 kg
- Power Supply
- 4 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 140 °/s
- Maximum Speed U Axis
- 178 °/s
- Maximum Speed R Axis
- 250 °/s
- Maximum Speed B Axis
- 250 °/s
- Maximum Speed T Axis
- 360 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
