GP Series
GP50
Multi-Purpose Handling robot with 50 kg Payload
Overview

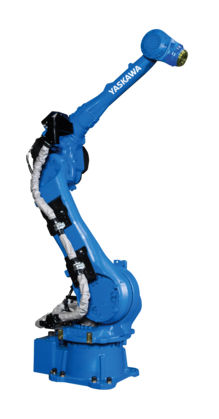

The MOTOMAN GP50 is a highly versatile 6-axis industrial robot with 50 kg payload, 2.061 mm reach, and an outstanding repeatability of +/- 0.03 mm.
The GP50 robot is offering a perfectly tuned payload / speed / wrist allowable moment combination, for impressive speed and acceleration performance. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices.
A version with high IP65/67 (dust & liquid protection) is available, for operation in harsh environments.
The GP50 is perfect for a wide range of applications, including machine tending, material handling, material removal, assembly, additive manufacturing, dispensing and grinding/polishing.
Technical Details
- Number of Axes
- 6
- Payload
- 50 kg
- Max. Working Range
- 2061 mm
- Repeatability
- 0.03 mm
- Weight
- 570 kg
- Power Supply
- 4 kVA
- Maximum Speed S Axis
- 180 °/s
- Maximum Speed L Axis
- 187 °/s
- Maximum Speed U Axis
- 187 °/s
- Maximum Speed R Axis
- 250 °/s
- Maximum Speed B Axis
- 250 °/s
- Maximum Speed T Axis
- 360 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
