MPL Series

MPL80 II

5-axis Palletizing Robot with 80 kg Payload

Yaskawa Europe Robotics Industrial Robots Palletizing MPL Series MPL80 II

Overview

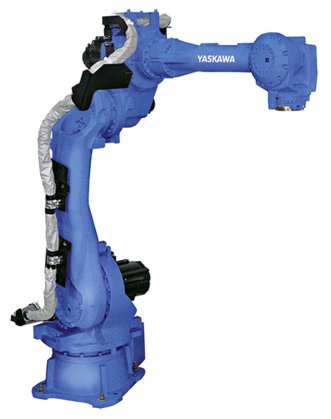

The MOTOMAN MPL80II is a 5-axis Palletizing Robot with a payload of 80 kg and a reach of 2,061 mm. This model is derived from a 6-axis-Handling robot and tuned for High Speed and Accelerations.

Based on the reliable Sigma5 Servo Technology, this robot is easy to install and deploy.





Technical Details

  • Number of Axes
  • 5
  • Payload
  • 80 kg
  • Max. Working Range
  • 2061 mm
  • Repeatability
  • 0.07 mm
  • Weight
  • 550 kg
  • Power Supply
  • 4 kVA
  • Maximum Speed S Axis
  • 170 °/s
  • Maximum Speed L Axis
  • 170 °/s
  • Maximum Speed U Axis
  • 170 °/s
  • Maximum Speed R Axis
  • x No
  • Maximum Speed B Axis
  • 170 °/s
  • Maximum Speed T Axis
  • 350 °/s
  • Mounting Options
  • Floor, Wall
  • Further Specifications
  • x No
Processing... Enter name, description, product or keywords Showing _START_ – _END_ / _TOTAL_ records filtered from _MAX_ records No records No records First Last Sort ascending Sort descending

Downloads

Name
Flyer Robot MPL80II
Flyer, datasheet, brochure, robot MPL80 Data sheet | English 		Data sheet English
Flyer Robot MPL80II
Flyer, Datenblatt, Prospekt, Roboter MPL80 Data sheet | German 		Data sheet German
MPL80II_2D CAD/CAE | CAD/CAE
MPL80II_3D CAD/CAE | CAD/CAE
