PL Series
PL320
High Performance Palletizing and Handling
Overview

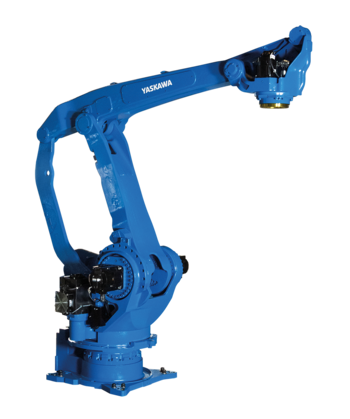

With over 1400 cycles per hour, the fast and powerful 4-axis MOTOMAN PL320 robot offers top performance for box, carton and bag palletizing for end-of-line packaging and logistics applications.
The optimized kinematic structure of this robot provides even better stability and higher max. payload capacity of 320 kg compared to the predecessor model.
The superior working range with a maximum reach of 3,159 mm and an achievable stacking height of over 2,600 mm is perfect for all kinds of palletizing tasks.
- High-Speed Palletizing: Achieve exceptional throughput with over 1,700 cycles per hour.
- Heavy-Duty Payload: Handle a wide range of products with a robust 190 kg payload capacity.
- Extended Reach & Stacking: Maximize workspace utilization with a 3,159 mm reach and over 2,600 mm stacking height.
- Optimized Efficiency: Streamline end-of-line packaging and logistics with reliable 4-axis robotic automation.
Technical Details
- Number of Axes
- 4
- Payload
- 320 kg
- Max. Working Range
- 3159 mm
- Repeatability
- 0.05 mm
- Weight
- 1680 kg
- Power Supply
- 9.5 kVA
- Maximum Speed S Axis
- 120 °/s
- Maximum Speed L Axis
- 110 °/s
- Maximum Speed U Axis
- 100 °/s
- Maximum Speed T Axis
- 300 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
