SG Series

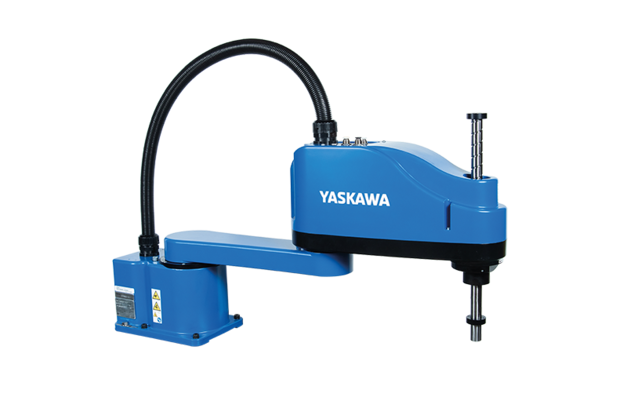

SG650
High speed scara robot
Overview
Designed for fast operating performance, the SG650 4-axis SCARA robot is ideal for increasing throughput for small part processing applications. It can handle part weights up to 6 kg in a radius of 650 mm. Highly precise and repeatable, the SG650 is well-suited for assembly and sortation processes needing short cycle times, as well as multi-process systems requiring pick-and-place capability. A compact body design with small footprint minimizes mounting space and enables easy integration with existing automation.

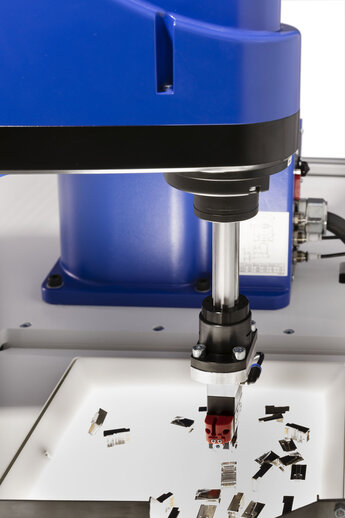

The SG650 is well suited for pick&place and smart part feeding in assembly.
Technical Details
- Number of Axes
- 4
- Payload
- 6 kg
- Max. Working Range
- 650 mm
- Repeatability
- 0.01 mm
- Weight
- 19 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 450 °/s
- Maximum Speed L Axis
- 730 °/s
- Maximum Speed U Axis
- 1300 mm/s
- Maximum Speed R Axis
- 2500 °/s
- Maximum Speed B Axis
- x No
- Maximum Speed T Axis
- x No
- Mounting Options
- Floor
- Further Specifications
- x No
