SP Series

SP235

Spot Welding Robot with High Payload

Yaskawa Europe Robotics Industrial Robots Welding & Cutting SP Series SP235

Overview

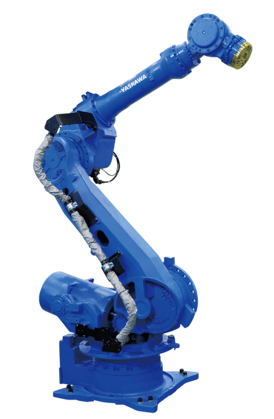

The MOTOMAN SP235 is a powerful spot welding and handling robot with a payload of 235 kg (including C-adapter). It is suitable for a wide range of common spot-welding guns and technologies, especially also for servo-controlled welding guns with robot-assisted gun alignment.

Its slim design does not require a mechanical counterbalance balancer and allows low moving masses as well as higher accelerations and
speeds. The stable wrist is particularly suitable for small and fast positioning movements, as are common in spot welding applications.

The MOTOMAN SP235 is controlled by the compact and powerful MOTOMAN YRC1000 controller and features the latest Yaskawa Sigma7 servo drive technology, is state-of-the-art in terms of dynamics and energy efficiency, and enables outstanding cycle times.



  • Versatile application possibilities
  • High payload & small footprint
  • High repeatability
  • High energy efficiency

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 235 kg
  • Max. Working Range
  • 2710 mm
  • Repeatability
  • 0.05 mm
  • Weight
  • 1345 kg
  • Power Supply
  • 5 kVA
  • Maximum Speed S Axis
  • 100 °/s
  • Maximum Speed L Axis
  • 90 °/s
  • Maximum Speed U Axis
  • 97 °/s
  • Maximum Speed R Axis
  • 120 °/s
  • Maximum Speed B Axis
  • 120 °/s
  • Maximum Speed T Axis
  • 190 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
Processing... Enter name, description, product or keywords Showing _START_ – _END_ / _TOTAL_ records filtered from _MAX_ records No records No records First Last Sort ascending Sort descending

Downloads

Name
Flyer Robot SP235
Spot welding & handling with the SP series Data sheet | English 		Data sheet English
Flyer Robot SP235
Punktschweißen & Handling mit der SP-Serie Data sheet | German 		Data sheet German
SP235 2D CAD/CAE | English CAD/CAE English
GP250_SP235 3D CAD/CAE | CAD/CAE
MOTOMAN Punktschweißsysteme
MOTOMAN SP-Serie und YRC1000 Robotersteuerung Brochures | German 		Brochures German
MOTOMAN Spot Welding Solutions
MOTOMAN SP-series and YRC1000 robot controller Brochures | English 		Brochures English
