MPK Series

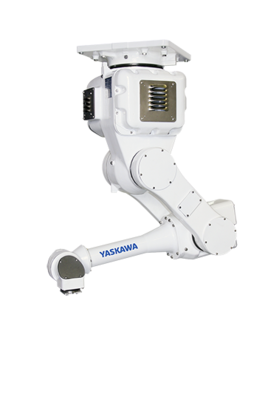

MPK2F-5
High Speed 5-axis Pick & Place Robots
Overview
The MOTOMAN MPK2F is a 5-axis robot with a payload of 5 kg and a reach of 900 mm - a real high speed picker with a productivity in the region of up to 2 picks per second, for superior performance in food handling, pick&place and pick&pack applications in end-of-line packaging and consumer good logistics. With it's washdown paintwork, the MPK2F has been designed especially for use in food, medical and life sciences industries and environments with strict cleanliness environments.
Technical Details
- Number of Axes
- 5
- Payload
- 5 kg
- Max. Working Range
- 900 mm
- Repeatability
- 0.5 mm
- Weight
- 72 kg
- Power Supply
- 1.5 kVA
- Maximum Speed S Axis
- 320 °/s
- Maximum Speed L Axis
- 330 °/s
- Maximum Speed U Axis
- 330 °/s
- Maximum Speed B Axis
- 380 °/s
- Maximum Speed T Axis
- 2000 °/s
- Mounting Options
- Wall, Ceiling, Floor
- Further Specifications
- x No
